MT16S 3P Multifunction Meter
Introduction
The MT16S ANSI Standard Programmable Multifunction and Multitariff Kilowatt Hour electricity meter can record of active energy and reactive energy for multiple rates. The meter can use optical interface with ANSI optical for meter data readout and configuration.
Features
- Recording of active energy and reactive energy for multiple rates
- Display of data with a liquid crystal display (LCD) and backlit
- Program various functions to measure and display through optical port
- Program time slots for multiple tariff and change with policy
- Program to set parameters to record for load profile and download data
- Compliance with accuracy CA0.2 according to ANSI
- Wide range of measurement from starting current to maximum current
IP54
Import/Export
kWh
Tariff
Specifications
| Item | Sub-item | Value |
|---|---|---|
| Measurement | Active accuracy(kWh) | CA 0.2, ANSI_C12.20 |
| Voltage | Rated voltage(Un) | 120V to 480V |
| Voltage | Working voltage range | 98 to 552VAC(line to neutral) |
| Current | Max.current(Imax) | 200A |
| Current | Starting current | 0.1 amps for class 200 |
| Frequency | Rated frequency(fn) | 50 Hz or 60Hz±5% |
| Power Consumption | Voltage circuit | ≤ 2.5W |
| Power Consumption | Current circuit | ≤0.2 VA at test current |
| Environmental Influences | Operating temperature range | -40°C ~+85°C |
| Environmental Influences | Storage temperature | -40°C ~+85°C |
| Environmental Influences | Impermeability to IEC 60529 | IP54 |
| Inputs and Outputs | Optical test output | LED (red): kWh/kvarh impulses |
| Inputs and Outputs | Meter constant | 100 imp/kWh, 100 imp/kvarh |
| Display | Type | With LCD liquid crystal display |
| Display | Backlit | With white color backlit |
| Display | Contents | 1669002539172LCD.png |
| TOU | Time of use | Up to 4 tariff |
| Time Clock & Calendar | Accuracy | 15 Seconds per Month at 23˚C |
| Time Clock & Calendar | Backup Time | 10 Years without Power (Lithium Battery) |
| Time Clock & Calendar | Battery | 1 replaceable external battery for (when power outage):; - RTC; - Display(push button); Capacity: 1200mAh |
| Communication Interface | Optical Interface | Optical communication – ANSI C12.18 |
| Billing & Max Demand | Storage | - 12 sets of energy billing data; - 12 sets of Max Demand data |
| Billing & Max Demand | MD mode | Block mode |
| Billing & Max Demand | MD value | Time and value of maximum demand; Value of cumulative Max Demand |
| Load Profile | Channels | Up to 19 |
| Load Profile | Integration period | 15, 30, 60 Minutes |
| Load Profile | Storage | 365 Days (19 Channels, 30-Minute Intervals) |
| Load Profile | Capture object | Demand(kW, kvar); Energy(kWh, kvarh); Instantaneous value(V, A) |
| Antifraud protection | Tamper detiction and alarms | Meter cover open; Terminal cover open; Magnetic field influence detection; Energy reverse; Battery/clock/memory failure detection; Pre-programmed alarms for meter self-check |
| Antifraud protection | Anti-Tamper | Anti 0.5T Magnetic influence |

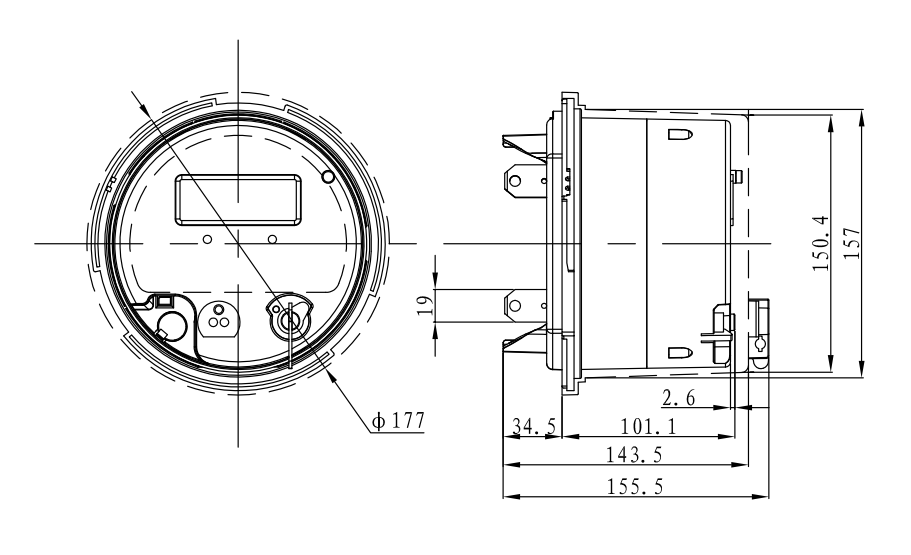

| Weight and dimensions | Dimensions | 177mm(H) x 177mm(W) x 155.5mm(D) |
| Weight and dimensions | Weight | approx. 1.2 kg |
